Cush Drive Hub Conversion
Unlike most other motorcycles of the time the XS650 never had a cushion drive at the rear hub. Vernon Blair has made the conversion to a cushion drive and has been kind enough to share the process with us through a series of pictures taken as the conversion was carried out.
Sprocket Mount

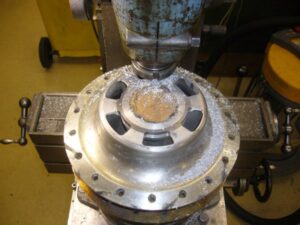

The first task is to machine a sprocket mounting piece that will hold the sprocket.
Spacer Slots

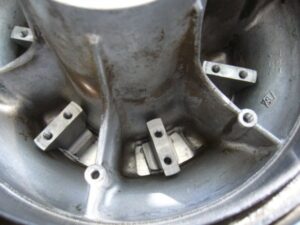

Step 2 is to machine slots for the spacers that will allow the sprocket mount to attach to the rubbers.
Sprocket Mounting Spacers

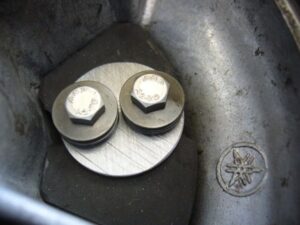

Step 3 is to make the spacers to join the sprocket mounting ring to the rubbers inside the brake hub.
Fitting the Rubbers

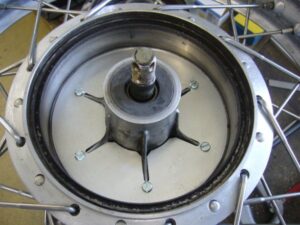

Install the cushion drive rubbers and bolt them in.
.
Cover Plate

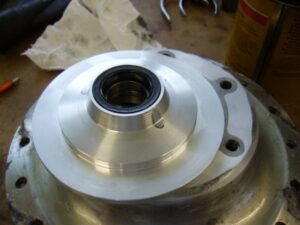

Finally a neat cover is made to hide the rubbers & bolts tying all of it together.
